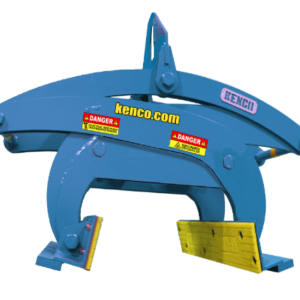

The KL16KNG8T18 Barrier Lift has a 8 to 18 inch grip range to handle 20 – 30 foot lengths of jersey wall easily. This jersey barrier lift has a 16000 pound capacity and hooks up with our recommended RigMax16800. The scissor action allows the operator to unload wall directly from the truck and set it into position.

FREE SHIPPING TO LOWER 48 STATES

Wear Items:

• Medium Actuator
• (2) 6″ X 36″ pads

Great for a wide range of jobs where barrier wall is used:

• Highway and Traffic Management
• Pedestrian Safety / Crowd Control
• Military Application
• Material Separation & Containment
• Agricultural Industry

USE IT TO LIFT PRECAST BARRIER WALL

• T-WALL / BREMER WALL
• F-SHAPE BARRIER WALL
• SINGLE SLOPE BARRIER WALL
• ZIPPER TEMPORARY BARRIER WALL
• TEXAS LOW PROFILE BARRIER WALL
• FLORIDA LOW PROFILE BARRIER WALL

Kenco created the first barrier lift 30 years ago. It is our flagship product! There is simply no other barrier wall clamp that compares! It is the strongest, safest, most-trusted barrier picker in the industry. See why this is the choice of every major contractor and governmental agency in the United States.

AUTOMATIC ACTION

The mechanical scissor action grips concrete automatically. By positioning and setting the Kenco Barrier Lift onto the wall, the lifting process begins. Elastomer pads clamp tightly against the wall surface. There are no auxiliary hydraulic hookups required. You can see more information in the Kenco lifting device manuals.

MATCHES SLOPE OF WALL

Free-swiveling pad angles adjust to match the slope of the wall. Both single slope and F-shape barrier wall are held securely during the process.

Once set firmly back on the ground and tension is released, the wall is released automatically. This action continues with each cycle of the barrier grab.

Standard models can be used on any median barrier with a 6-12″ top and range in capacities from 9,000 to 40,000 pounds. Custom models can be built to accommodate any barrier you need to grab. If you need even more lifting capacity, we now offer the Kenco double barrier lifter!

STANDARD 6\” TO 12\” GRIP RANGES

CERTIFIED PERFORMANCE

Kenco’s patented below the hook lifting products are designed, manufactured and tested in compliance with the latest revisions of the ASME B30.20 and BTH-1 standards and are accepted by OSHA, CanOSH, as well as virtually all other world wide standards. The Barrier Lift is a patented design under US Patent 6331025.

Every lifting device is hand tested by our engineering staff before it leaves our facility.

THESE AUTOMATIC TONGS WILL DOUBLE PRODUCTION AND CUT TIME IN HALF.
